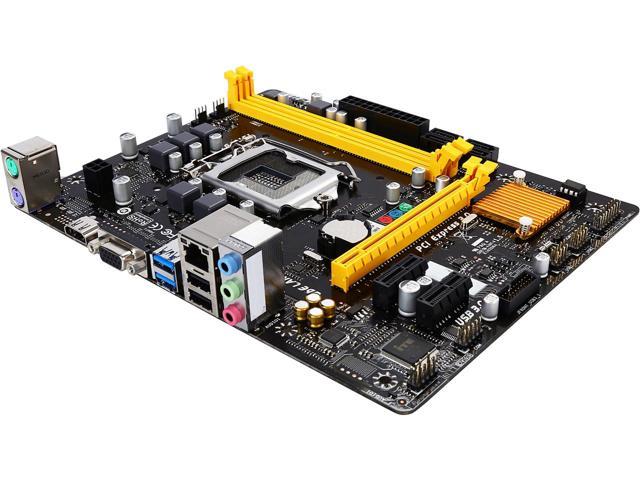

BIOSTAR H110MH PRO D4

Giá: 400.000₫ Còn hàng

Chipset

  • Intel H110

CPU SUPPORT

  • 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
  • 7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
  • 7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
  • 7th & 6th Gen Intel® Pentium® LGA 1151 Processor
  • 7th & 6th Gen Intel® Celeron® LGA 1151 Processor
  • Maximum CPU TDP (Thermal Design Power) : 91Watt

MEMORY

  • Support Dual Channel DDR4 2133/ 1866 MHz
  • 2 x DDR4 DIMM Memory Slot
  • Max. Supports up to 32GB Memory

EXPANSION SLOT

  • 1 x PCI-E 3.0 x16 Slot
  • 2 x PCI-E 2.0 x1 Slot

STORAGE

  • 4 x SATA3 Connector

USB

  • 2 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header

LAN

  • Realtek RTL8111H - 10/100/1000 Controller
  • Support Super LAN Surge Protection

INTEGRATED VIDEO

  • By CPU model
  • Supports DX12
  • Supports HDCP

CODEC

  • Realtek ALC887 8-Channel HD Audio

REAR I/O

  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz, compliant with HDMI 1.4a
  • 1 x VGA Port, resolution up to 1920 x 1200 @60Hz
  • 1 x RJ-45 Port
  • 3 x Audio Connector

INTERNAL I/O

  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 4 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU Fan Header
  • 1 x System Fan Header
  • 1 x Serial Header

H/W MONITORING

  • CPU / System Temperature Monitoring
  • CPU / System Fan Monitoring
  • Smart / Manual CPU Fan Control
  • System Voltage Monitoring

DIMENSION

  • Micro ATX Form Factor Dimension: 22.6cm x 17.7cm ( W x L )

OS SUPPORT

  • Support Windows 7 / 8.1(x64) / 10(x64)

BUNDLE SOFTWARE

  • BullGuard
  • BIO-Remote2
  • Smart Speed LAN

ACCESSORIES

  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide

FEATURES

  • Supports 100% Solid capacitor
  • Supports Charger Booster
  • Supports BIOS Online Update
